AuCom soft starters CSX series

AuCom



Functions:

  • Compact size
  • Easy-to-use adjustments
  • Integrated bypass contactors.


Distinctive features:

  • Equipped with an internal bypass function to reduce operating costs.
  • 99.5% efficient during run.
  • Employs a timed voltage ramp system, which provides you with greater control over soft start and soft stop performance.
  • Initial start voltage.
  • Start ramp time.
  • Soft stop ramp time.

Additional links:

 Technical documentation and Downloads
 Request additional information and get a price quote

Model range

CSX series

Model Capacity,
kW
Current,
A
Deceleration time, sec Price
CSX-007-41 7,5 18 10-20 reduced!
CSX-015-41 15 34 10-20 reduced!
CSX-018-41 18,5 42 10-20 reduced!
CSX-022-41 22 48 10-20 reduced!
CSX-030-41 30 60 10-20 reduced!
CSX-037-41 37 75 10-20 reduced!
CSX-045-41 45 85 10-20 reduced!
CSX-055-41 55 100 10-20 reduced!
CSX-075-41 75 140 10-20 reduced!
CSX-090-41 90 170 10-20 reduced!
CSX-110-41 110 200 10-20 reduced!

AuCom soft starters CSX series - making soft starters simple.

The CSX soft starter employs a timed voltage ramp system, which provides you with greater control over soft start and soft stop performance, reducing energy costs and enhancing the efficiency of your motor. Simple operation features and the built-in bypass function are housed in a compact package, giving a cost-effective solution for stopping and starting control.

Compact design.

The CSX soft starter is a compact unit suitable for mounting in a switchboard or motor control centre without the need for an external bypass contactor. At only 165 mm deep it is easy to mount in shallow switchboards. For motors up to 60 A the soft starter can be mounted on a DIN-rail, or the CSX may be mounted in a bank horizontally to use less space, often critical in certain switchboards.

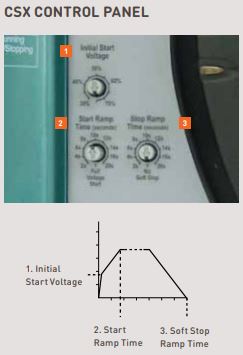

Control made easier with AuCom soft starter CSX series.

Three adjustments can be made on the CSX soft starter:
- Initial start voltage
- Start ramp time
- Soft stop ramp time.
Control made easier with AuCom soft starter CSX series.

Efficient motor control with AuCom soft starter CSX series.

Design of energy efficient systems requires consideration of the system as a whole. Using energy efficient components is important but selection of the correct motor control mode (fixed or variable speed) is also critical. Approximately 80% of motor applications are most efficiently operated at a fixed speed. Using a variable speed drive (VSD) with such a system is hugely inefficient, regardless of the efficiency of the motor you are running.
Efficient motor control with AuCon soft starter CSX series.
