AuCom soft starters EMX3 series

AuCom



Functions:

  • Fully customisable protection
  • Motor thermal model
  • Motor thermistor input
  • Phase sequence
  • Undercurrent
  • Instantaneous overcurrent
  • Auxiliary trip input
  • Heatsink overtemperature
  • Excess start time
  • Supply frequency
  • Shorted SCR
  • Power circuit
  • Motor connection



Distinctive features:

  • Pumping (e.g. high head applications)
  • Compressors (for optimising blade control)
  • Bandsaws (easy blade alignment)
  • Irrigators (built-in timer)
  • Communication modules
  • Finger guards
  • Input/output card

Additional links:

 Technical documentation and Downloads
 Request additional information and get a price quote

Model range

EMX3 series (3 phase 200-440 V)

Model Current,
A
Deceleration time, sec Price
EMX3-0023B-V4-C2-H 23 0-10 reduced!
EMX3-0043B-V4-C2-H 43 0-10 reduced!
EMX3-0050B-V4-C2-H 50 0-10 reduced!
EMX3-0053B-V4-C2-H 53 0-10 reduced!
EMX3-0076B-V4-C2-H 76 0-10 reduced!
EMX3-0097B-V4-C2-H 97 0-10 reduced!
EMX3-0100B-V4-C2-H 100 0-10 reduced!
EMX3-0105B-V4-C2-H 105 0-10 reduced!
EMX3-0145B-V4-C2-H 145 0-10 reduced!
EMX3-0170B-V4-C2-H 170 0-10 reduced!
EMX3-0200B-V4-C2-H 200 0-10 reduced!
EMX3-0220B-V4-C2-H 220 0-10 reduced!
EMX3-0255B-V4-C2-H 255 0-10 reduced!
EMX3-0350B-V4-C2-H 350 0-10 reduced!
EMX3-0425B-V4-C2-H 425 0-10 reduced!
EMX3-0500B-V4-C2-H 500 0-10 reduced!
EMX3-0580B-V4-C2-H 580 0-10 reduced!
EMX3-0700B-V4-C2-H 700 0-10 reduced!
EMX3-0820B-V4-C2-H 820 0-10 reduced!
EMX3-0920B-V4-C2-H 920 0-10 reduced!

EMX3 series (3 phase 380-690 V)

Model Current,
A
Deceleration time, sec Price
EMX3-0023B-V7-C1-H 23 0-10 reduced!
EMX3-0043B-V7-C1-H 43 0-10 reduced!
EMX3-0050B-V7-C1-H 50 0-10 reduced!
EMX3-0053B-V7-C1-H 53 0-10 reduced!
EMX3-0076B-V7-C1-H 76 0-10 reduced!
EMX3-0097B-V7-C1-H 97 0-10 reduced!
EMX3-0100B-V7-C1-H 100 0-10 reduced!
EMX3-0105B-V7-C1-H 105 0-10 reduced!
EMX3-0145B-V7-C1-H 145 0-10 reduced!
EMX3-0170B-V7-C1-H 170 0-10 reduced!
EMX3-0200B-V7-C1-H 200 0-10 reduced!
EMX3-0220B-V7-C1-H 220 0-10 reduced!
EMX3-0255B-V7-C1-H 255 0-10 reduced!
EMX3-0350B-V7-C1-H 350 0-10 reduced!
EMX3-0425B-V7-C1-H 425 0-10 reduced!
EMX3-0500B-V7-C1-H 500 0-10 reduced!
EMX3-0580B-V7-C1-H 580 0-10 reduced!
EMX3-0700B-V7-C1-H 700 0-10 reduced!
EMX3-0820B-V7-C1-H 820 0-10 reduced!
EMX3-0920B-V7-C1-H 920 0-10 reduced!
EMX3-1000B-V7-C1-H 1000 0-10 reduced!

Take control from the start with AuCom soft starters EMX3 series.

The EMX3 is a comprehensive motor management system for the most demanding soft starting and stopping applications. With an impressive range of features, the EMX3 delivers superior performance and an unprecedented level of flexibility in a compact and user-friendly package. A quick setup guide helps you configure the starter for common applications by suggesting a typical setting, which you can then fine tune to suit your needs, all accessible from the easy to use keypad. The keypad is easily mounted on the exterior of your enclosure, using an optional keypad mounting kit, and a single keypad can be used to transfer settings between starters. The EMX3 doesn’t just start and stop your machinery with constant current and current ramp, it also features the innovative XLR-8 Adaptive Acceleration Control. XLR-8 gives you the ability to precisely manage your starting and stopping acceleration, reducing downtime and addressing water hammer problems.

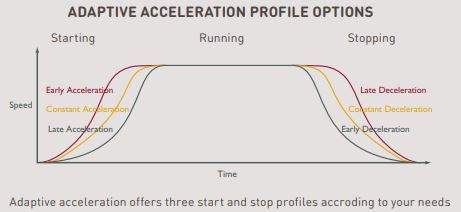

XLR-8: Adaptive Acceleration Control.
AuCom’s industry-leading motor control technology XLR-8 Adaptive Acceleration Control, gives you precise control over your motor’s acceleration and deceleration profiles, eliminating problems caused by water hammer. Using XLR-8, the soft starter learns your motor’s performance during start and stop, then adjusts control to optimize performance. Simply select the profile that best matches your load type and the soft starter automatically ensures the smoothest possible acceleration for your load.
Take control from the start with AuCom soft starters EMX3 series.

Easy installation and operation.

The EMX3 is easy to use during installation, commissioning, operation and even troubleshooting.

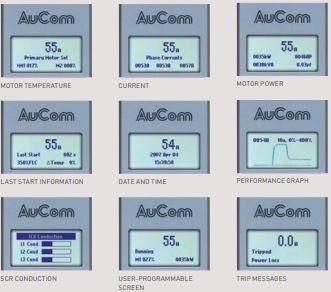

Real language in real time.
We’ve packed the EMX3 with features designed to make your life easier, including real-language feedback messages, so you don’t have to look up codes to know what’s happening. Real-time graphs of motor operating performance and current quickly and clearly illustrate exactly how your motor is performing.
Removable connectors & unique wire way.
Installation is easy, with plug-in control terminal blocks. simply unplug each block, complete the wiring and re-insert the block. Using the EMX3's unique and flexible cable ways, cables can be efficiently organized for wiring from either the top, left or from below.
Remote display mounting.
The keypad is easily mounted on the exterior of your enclosure. When mounting multiple soft starters in a single enclosure, this allows centralized control from a single location, with all the relevant information. A single keypad can be used to transfer settings between starters.

AuCom soft starter EMX3 series engineered packages.

As well as chassis starters, EMX3 is available in enclosures as standard packages, or we will custom engineer a solution to your specifications. With a choice of NEMA 12, NEMA 3R and other enclosures, standard or heavy duty rating and optional line-rated bypass contactor and circuit breaker, there’s an EMX3 package to suit your requirements.
Fully customizable.
Any EMX3 starter can be built into a package with your choice of options, including:
– NEMA 12, NEMA 3R and other enclosures
– Line-rated bypass contactor and circuit breaker
– SS/Off/ATL switch
– Control power transformer
– Pushbuttons and indicator lights
– Door-mounted keypad
– Space heater with thermostat
– and more.
AuCom soft starter EMX3 series engineered packages.

Features and options.

Advanced operation.
To meet the unique requirements of your application, the EMX3 offers a range of advanced features. The EMX3 meets the needs of specific applications including:
– Pumping (such as high head applications)
– Compressors (optimizing load control)
– Bandsaws (easy blade alignment)
– Irrigation systems (built-in timer)
Simulations.
Need to test the installation before connecting a motor? The EMX3 simulation functions let you test the soft starter’s operation, external control circuits and associated equipment without connecting the soft starter to line voltage or a motor. The EMX3 has three simulation modes: Run simulation: simulates a motor starting, running and stopping to ensure correct installation. Protection simulation: simulates activation of each protection mechanism to confirm correct protection response. Signalling simulation: simulates output signalling.
Removable connectors.
Installation is easy with plug-in control terminal blocks. Simply unplug each block, complete the wiring and re-insert the block. Using the EMX3’s unique and flexible cable ways, cables can be efficiently organized for wiring from either the top, left or from below.
