Eura Drives E2100P series with special pump software. It can be used for single pump control, multi pump control and cascade control without external master controller. E2100P series frequency inverters has high-tech motor control concept, based on advanced DSP-technology, and a lot of different setup parameters. Assembled using high quality components it provides cost efficiency and reliability. Smart functions such as water flow detection, pump cleaning, HAND / AUTO control, etc., help to make the services for pumps easier and extend the life time of pump.
Additional links:  Technical documentation and Downloads
Request additional information and get a price quote
|
Model range
E2100P series for pump applications (1 phase 220-240 V)
| Model | Capacity, kW |
Current, A |
Deceleration time, sec | Dimensions (W x H x D), mm |
Price | |
|---|---|---|---|---|---|---|
| E2100P-0002S2 | 0.2 | 1.5 | 0.1-3000 | 80x153x142 | 171,00 € | |
| E2100P-0004S2 | 0.4 | 2.5 | 0.1-3000 | 80x153x142 | 180,00 € | |
| E2100P-0007S2 | 0.75 | 4.5 | 0.1-3000 | 80x153x142 | 189,00 € | |
| E2100P-0015S2 | 1.5 | 7 | 0.1-3000 | 80x153x142 | 198,00 € | |
| E2100P-0022S2 | 2.2 | 10 | 0.1-3000 | 106x195x157 | 221,00 € | |
E2100P series for pump applications (3 phase 380-480 V)
| Model | Capacity, kW |
Current, A |
Deceleration time, sec | Dimensions (W x H x D), mm |
Price | |
|---|---|---|---|---|---|---|
| E2100P-0007T3 | 0.75 | 2 | 0.1-3000 | 80x153x142 | 261,00 € | |
| E2100P-0015T3 | 1.5 | 4 | 0.1-3000 | 80x153x142 | 270,00 € | |
| E2100P-0022T3 | 2.2 | 6.5 | 0.1-3000 | 106x195x157 | 297,00 € | |
| E2100P-0030T3 | 3 | 7 | 0.1-3000 | 106x195x157 | 396,00 € | |
| E2100P-0040T3 | 4 | 9 | 0.1-3000 | 106x195x157 | 423,00 € | |
| E2100P-0055T3 | 5.5 | 12 | 0.1-3000 | 142x248x159 | 486,00 € | |
| E2100P-0075T3 | 7.5 | 17 | 0.1-3000 | 142x248x159 | 531,00 € | |
| E2100P-0110T3 | 11 | 23 | 0.1-3000 | 161x280x177 | 720,00 € | |
| E2100P-0150T3 | 15 | 32 | 0.1-3000 | 161x280x177 | 774,00 € | |
| E2100P-0185T3 | 18.5 | 38 | 0.1-3000 | 210x358x203 | 1 000,00 € | |
| E2100P-0220T3 | 22 | 44 | 0.1-3000 | 210x358x203 | 1 159,00 € | |
| E2100P-0300T3 | 30 | 60 | 0.1-3000 | 210x358x203 | 1 413,00 € | |
| E2100P-0370T3 | 37 | 75 | 0.1-3000 | 265x465x242 | 1 930,00 € | |
| E2100P-0450T3 | 45 | 90 | 0.1-3000 | 265x465x242 | 2 170,00 € | |
| E2100P-0550T3 | 55 | 110 | 0.1-3000 | 360x630x265 | 2 810,00 € | |
| E2100P-0750T3 | 75 | 150 | 0.1-3000 | 360x630x265 | 3 420,00 € | |
| E2100P-0900T3 | 90 | 180 | 0.1-3000 | 410x765x300 | 3 690,00 € | |
| E2100P-1100T3 | 110 | 220 | 0.1-3000 | 410x765x300 | 4 230,00 € | |
| E2100P-1320T3 | 132 | 265 | 0.1-3000 | 410x765x300 | 5 040,00 € | |
| E2100P-1600T3 | 160 | 320 | 0.1-3000 | 516x765x326 | 6 300,00 € | |
| E2100P-1800T3 | 180 | 360 | 0.1-3000 | 560x910x342 | reduced! | |
| E2100P-2000T3 | 200 | 400 | 0.1-3000 | 400x1310x385 | reduced! | |
| E2100P-2200T3 | 220 | 440 | 0.1-3000 | 400x1310x385 | reduced! | |
| E2100P-2500T3 | 250 | 480 | 0.1-3000 | 535x1340x380 | reduced! | |
| E2100P-2800T3 | 280 | 530 | 0.1-3000 | 535x1340x380 | reduced! | |
| E2100P-3150T3 | 315 | 580 | 0.1-3000 | 600x1463x380 | reduced! | |
| E2100P-3550T3 | 355 | 640 | 0.1-3000 | 600x1463x380 | reduced! | |
| E2100P-4000T3 | 400 | 690 | 0.1-3000 | 600x1593x380 | reduced! | |
Frequency inverter E2100P highlights
- High-tech motor control concept, based on advanced DSP-technology - ready for V/Hz, sensorless vector, CLV and permanent magnet synchronous motor control PMSM- Intelligent autotuning functions for easy setup
- Compact in size, modular in concept, rugged construction, build for the worldwide market
- Flexible inverter control, dual high resolution analogue inputs, free mapping for all I/O channels
- Ready for all commonly used fieldbus systems
- Universal parameter-set for all kind of industrial and residential applications, including integrated PID/ controller routines
- Smart PC-tools for inverter control, parametrization and troubleshooting
- Parameter-duplication stick
- EMC filter(C3 class) integrated.Optional C1 footprint filter
- Approved and certified for worldwide standards, by independent bodies
Protection functions
- Leakage detection
- Dry run protection
- Filling protection
Auxiliary function
- Water Flow Detection
- Pump Cleaning
- HAND / AUTO Control
- Antirust & Antifreeze
- Time Control Mode
- Autotunning Solar Pump
- User Macro

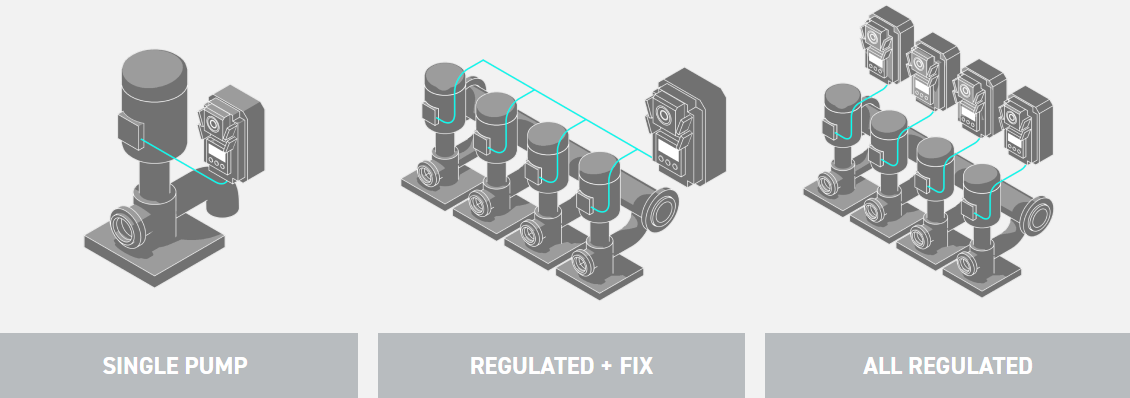

Pumps control system
Single pump control, multi pump control and cascade control without external master controller.
Wiring diagram
