Eura Drives frequency inverter E2200 general purpose series

Eura Drives frequency inverter E2200 general purpose series

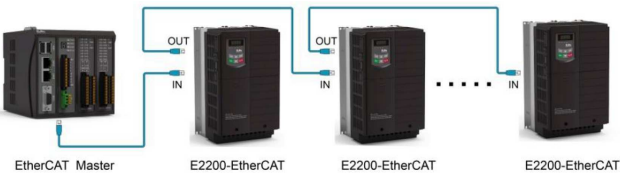

Eura Drives E2200 series is suitable for wide range of application. Provides an efficient control of a standard AC motor and a PMSM synchronous motor. Equipped with a modern and fast protocol EtherCAT network that allows to use the computing power of PLC controllers.

SVC (Sensorless Vector Control), VC1 (Vector Control), VVVF
New drive algorithms ensure flexibility
Built-in PID adjusting
Communication protocols: EtherCat, ModBus RS485, CANopen (option), CAN bus
Lower costs of ownership - high drive efficiency translates into energy savings, reducing the costs of designing and using high-performance processes
Integrated choke in the DC and high circuits as standard quality EMC filter significantly reduces network interference and distortion
Drive configuration simplified to the necessary minimum, free EuraDV™ computer software and cooperation with EURA CopyStick™.
Safe electronics - unique painting technology for power and control boards protects the electronics of this drive against the working environment

Additional links:

Technical documentation and Downloads

Request additional information and get a price quote

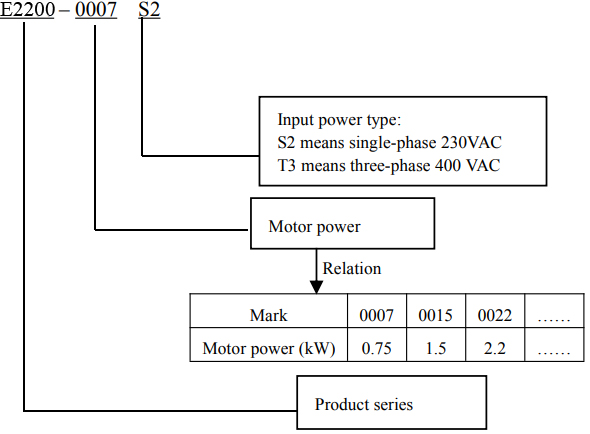

Model range

E2200 general purpose series (1 phase 220-240 V)

Model	Capacity, kW	Current, A	Deceleration time, sec	Dimensions (W x H x D), mm	Price
E2200-0004S2	0.4	2.5	0.1-3000	106x180x150	185,00 €
E2200-0007S2	0.75	4.5	0.1-3000	106x180x150	189,00 €
E2200-0011S2	1.1	5	0.1-3000	106x180x150	reduced!
E2200-0015S2	1.5	7	0.1-3000	106x180x150	198,00 €
E2200-0022S2	2.2	10	0.1-3000	106x180x150	207,00 €

E2200 general purpose series (3 phase 380-480 V)

Model	Capacity, kW	Current, A	Deceleration time, sec	Dimensions (W x H x D), mm	Price
E2200-0007T3	0.75	2	0.1-3000	106x180x150	270,00 €
E2200-0015T3	1.5	4	0.1-3000	106x180x150	279,00 €
E2200-0022T3	2.2	6.5	0.1-3000	106x180x150	293,00 €
E2200-0030T3	3	7	0.1-3000	106x180x150	369,00 €
E2200-0040T3	4	9	0.1-3000	106x180x150	396,00 €
E2200-0055T3	5.5	12	0.1-3000	138x235x152	450,00 €
E2200-0075T3	7.5	17	0.1-3000	138x235x152	513,00 €
E2200-0110T3	11	23	0.1-3000	156x265x170	675,00 €
E2200-0150T3	15	32	0.1-3000	156x265x170	734,00 €
E2200-0185T3	18.5	38	0.1-3000	205x340x196	918,00 €
E2200-0220T3	22	44	0.1-3000	205x340x196	1 053,00 €
E2200-0300T3	30	60	0.1-3000	205x340x196	1 305,00 €
E2200-0370T3	37	75	0.1-3000	265x435x235	1 800,00 €
E2200-0450T3	45	90	0.1-3000	265x435x235	2 052,00 €
E2200-0550T3	55	110	0.1-3000	360x630x265	2 547,00 €
E2200-0750T3	75	150	0.1-3000	360x630x265	3 060,00 €
E2200-0900T3	90	180	0.1-3000	410x765x300	3 330,00 €
E2200-1100T3	110	220	0.1-3000	410x765x300	3 735,00 €
E2200-1320T3	132	265	0.1-3000	410x765x300	4 500,00 €
