Model range
VersiStart III series (9А - 45А)
| Model | Capacity, kW |
Current, A |
Deceleration time, sec | Price | |
|---|---|---|---|---|---|
| VS III 400-9 | 4 | 9 | 0,25-10 | 475,00 € | |
| VS III 400-16 | 7.5 | 16 | 0,25-10 | 524,00 € | |
| VS III 400-25 | 11 | 25 | 0,25-10 | 586,00 € | |
| VS III 400-37 | 18.5 | 37 | 0,25-10 | 674,00 € | |
| VS III 400-45 | 22 | 45 | 0,25-10 | 758,00 € | |
Peter Electronic soft starter series VersiStart III (9А - 45А).
Function:
- Soft acceleration and deceleration
- Potential-free control input for soft acceleration and deceleration
- Separately adjustable parameters accel. time, start voltage, decel. time, current limiting.
- Rated device current and tripping class
- Boost-start selectable
- Potential-free relay output for operating state
- Transistor output — unit bypassed
Typical Applications:
- Door and gate drives
- Pumps, ventilators, fans
- Conveying systems, packaging machines
- Transport systems, assembly lines, machine application
Options (upon request):
- Special voltages 230V and 480V
- Wide voltage range 200-480V with external control supply voltage US 230VAC (B)
- Signalling contact (M)beginning of acceleration until end of deceleration.
%201.jpg "Peter Electronic soft starter series VersiStart III (9А - 45А)")

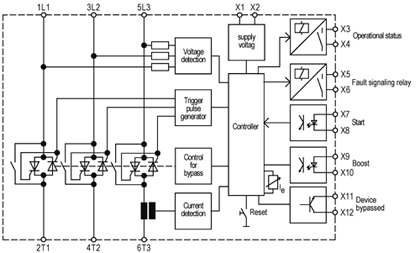

Peter Electronic soft starter series VersiStart III (9А - 45А) typical designation.
- Rated operation voltage Ue
400V ± 10% 50/60Hz.
- Control supply voltage Us only with option B
230V ± 10% AC 50/60 Hz
- Max. power dissipation.
in operating related to max. starting frequency 20W.
standby 5W.
- Min. motor load.
20% of device rating.
- Starting time.
0,5....10s .
- Starting voltage.
40-80% .
- Stopping time.
0,25....10s.
- Restart time.
200ms.
- Input resistance control inputs.
80kOhm.
- Control voltage Uc.
24VDC … 230VAC.
- Contact rating of relay outputs RA1/RA2.
2A / 250VAC / 30VDC.
- Contract rating of transistor output.
20mA / 30VDC
- Installation class.
3.
- Max tightening torque control / power terminals.
Spring-loaded terminals.
- Ambient / storage temperature.
0°C ... 45°C up tp an altitude of 1000m / -25°C ... 75°C

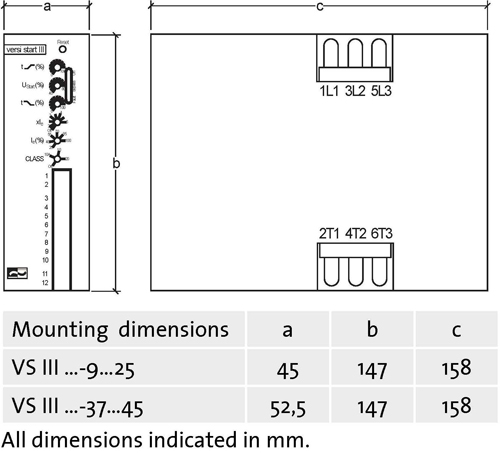

Dimensions.
%202.jpg "Peter Electronic soft starter series VersiStart III (9А - 45А) dimensions")
