Model range

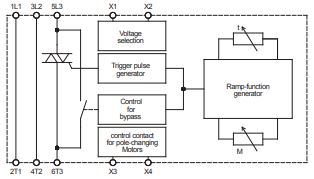

Peter Electronic soft starter series SAS.
Function:
- Soft start
- 2 separately adjustable parameters starting torque, starting time
- Control contact for pole-changing motors
Typical Applications:
- Transformer soft-starter
- Door drives
- Packaging machines
- Conveyors
- Others
Options (upon request):
- Potential-free input control voltage 10 ... 30VDC
- SAS 3 up to SAS 11: standard up to 480V special voltages 500V up to 640V (all types in 100mm-housing).
%20SERIES%20SOFT%20STARTERS%201.JPG "Peter Electronic soft starter series SAS")
Peter Electronic soft starter SAS series soft starters typical designation.
- Mains / motor voltage X1-X2 jumpered according to DIN EN 50160 (IEC 38).
160 … 240V ±10 %.
- Mains / motor voltage X1-X2 not jumpered according to DIN EN 50160 (IEC 38.
380 … 480V ±10 %.
- Mains frequency.
50/60Hz.
- Min. motor current.
10% of device rating.
- Starting torque.
0 ... 50%.
- Starting time.
0,5 ... 5s.
- Restart time.
200ms.
- Max. cross-sectional area.
2,5mm²
- Ambient / storage temperature.
0°C ... 45°C / -25°C ... 75°C.
Dimensions.
%20SERIES%20SOFT%20STARTERS%202.JPG "Peter Electronic soft starter SAS series soft starters typical designation.")

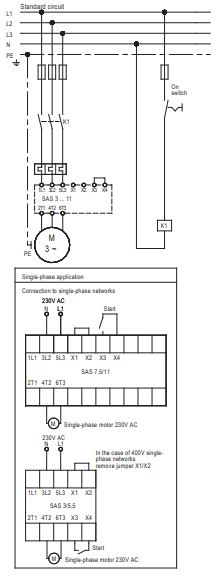

Connection diagram.
%20SERIES%20SOFT%20STARTERS%203.JPG "Peter Electronic soft starter SAS series soft starters typical designation.")
