Fuji Frenic-Ace Drives (FRN-E3)

High basic performance

- Provides a full range of motor control and enhanced functionality
- Supports a wide variety of networks to realize IoT

Faster operating speeds

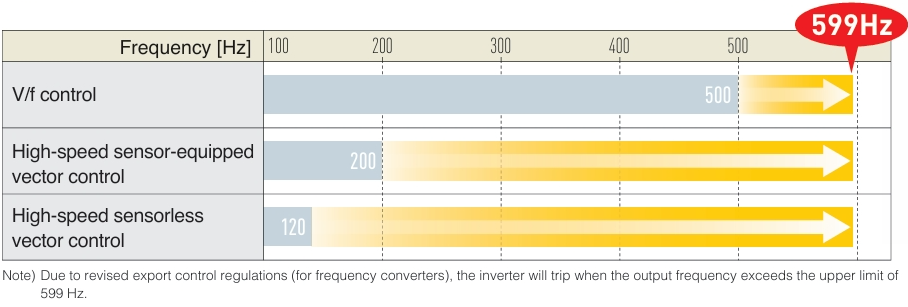

Increases the maximum output frequency of all control systems to 599 Hz and supports applications that require high-speed rotation and minimal speed and torque fluctuations.

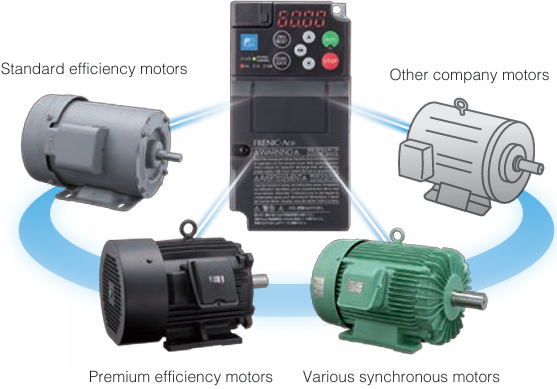

Can be used with any motor

Improves speed control range to stabilize torque at low speeds. Enables multi-drive with our induction and synchronous motors, as well as other company motors.

Advanced dynamic torque vector control

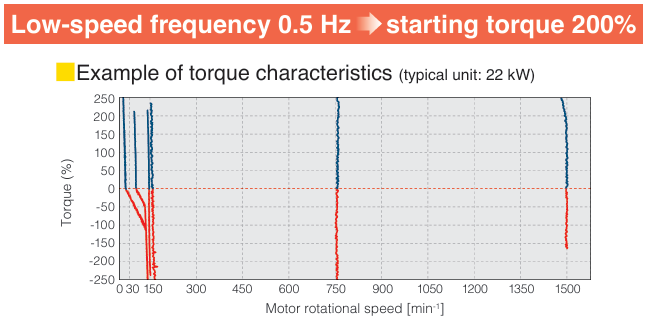

Enhances our proprietary dynamic torque vector control with new motor constant tuning (that takes into account the voltage of the main circuit) and newly designed magnetic flux observer.

Orientation function

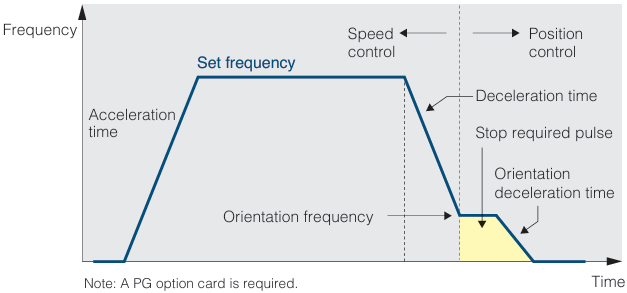

Capable of rotator positioning, enabling machinery to be held in place via servo locking after stoppage.

Customizable logic functions

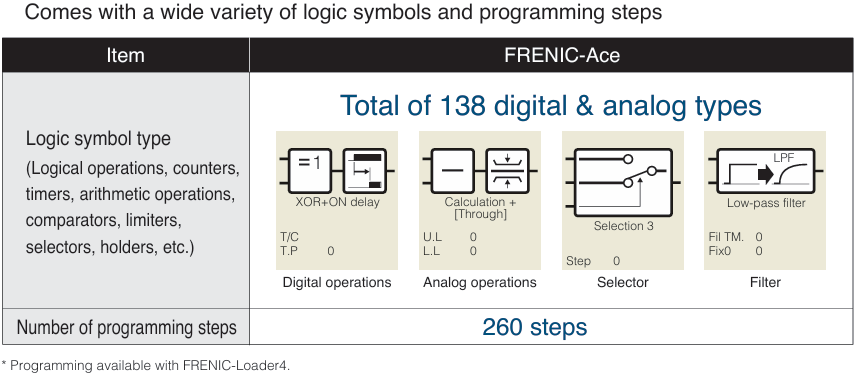

Customizable inverter functions to meet your own specific needs.
Requires no PLC or external control equipment (relays, timers, etc.) circuits, and can be configured simply by setting and combining various parameters inside the inverter.

Enhanced network functions

Expands supported networks, contributing to reduced equipment wiring and data linkage.

Standard

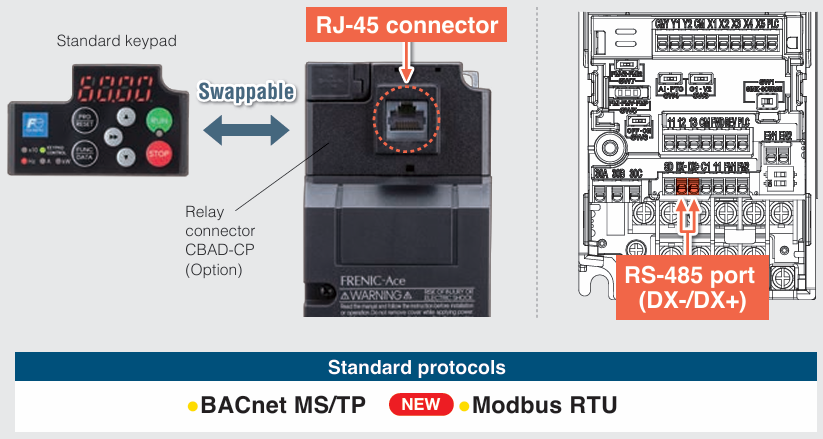

- RS-485 port (DX-/DX+) provided separately from the main unit port (RJ-45 connector).
Supports two protocols (Modbus RTU and BACnet MS/TP) using these connections.

Option
Option cards are available to connect to various internationally-popular industrial protocols:
- EtherNet/IP
- PROFINET
- Modbus TCP
- DeviceNet
- PROFIBUS-DP
- CC-Link
- CANopen

Side-by-side installation

Enables side-by-side installation and use at full capacity when multiple inverters are arranged in a panel. Saves space via compact control panel design.

Extensive lineup

- Lineup of 4 types for each power supply voltage
- Supports a wide range of applications from light loads to heavy loads

Wide range of power supply voltages and capacity expansion

Supports wide range of inverter power supply specifications, including 3-phase 200 V series / 400 V series and single-phase 200 V series. Available in capacities up to 22 kW (HHD), a finless type and an Ethernet type have been added to the lineup.
Newly added to the lineup were the single-phase, 200 V, high carrier frequency normal duty (HND) type. Delivering a higher current rating for some 400 V series, models in a wide range of capacities are selectable depending on the applications.

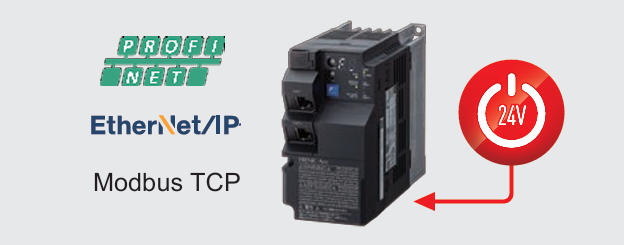

Ethernet type

- Reduces tact time
Reduces tact time for setting, updating, and monitoring via the Internet.
- Shortens wiring work and reduces wiring
Shortens wiring time and reduces wiring for conventional control signals DI/DO and AI/AO. Compact installation without requiring option cards.
- Compatible with 24 V power supplies
External 24 V power supply input enables checking communication establishment prior to system start-up.
Note: I/O interface is inoperative.

Note: This type does not support the use of option cards.

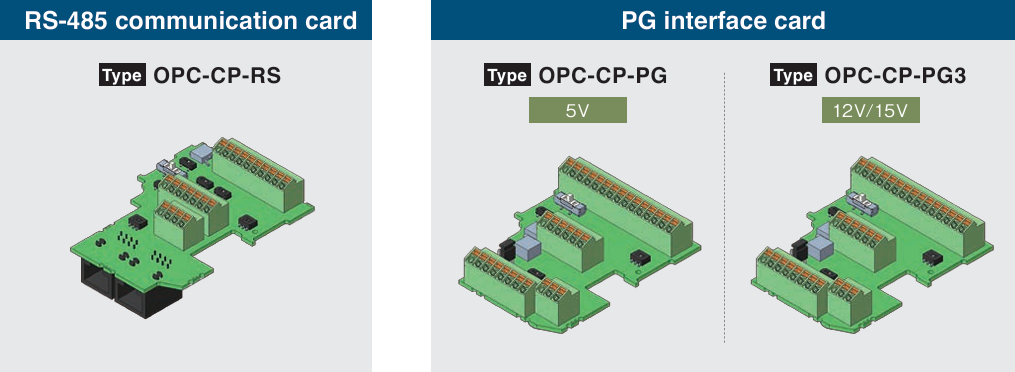

Expansion of functions by replacing control terminal board (Option)

Available in 3 types of terminal boards as options, enabling application-specific connection and I/O function expansion (for types with built-in Ethernet, the control terminal board cannot be replaced).

Easy maintenance

- Easy wiring and setup, as well as remote control, for improved work efficiency
- Provides preventive and predictive maintenance functions to ensure safety

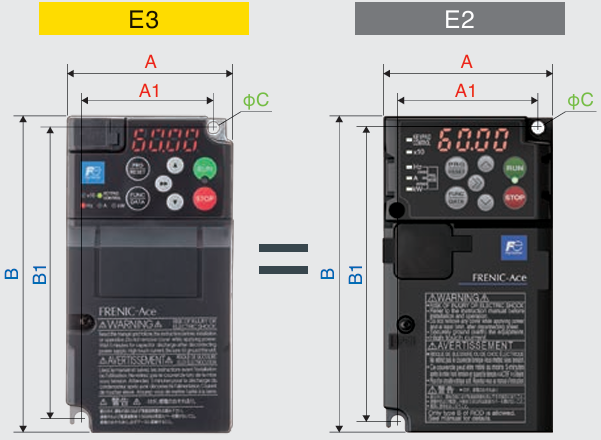

Same mounting dimensions Compatible inverter body mounting dimensions. Note: The depth dimension (D) is larger than the E2 Series, so please check the outline drawing.

Simple wiring Features a push-in terminal block for the control terminal block to dramatically improve wiring workability.

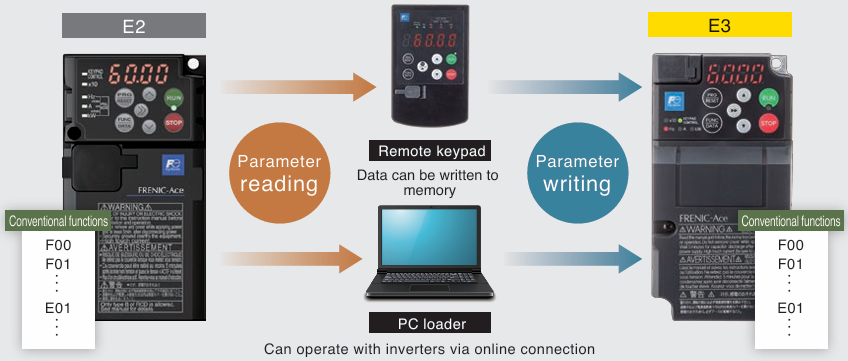

Easy parameter migration

Compatibility mode allows parameters read from the previous model to be written directly to the E3 Series.

Enhanced PC loader functions

Comes standard with a USB port (Mini-B) for direct communication between the inverter and a PC. Parameters can be written to and read from the inverter using only bus power.

Accessible on mobile devices (option)

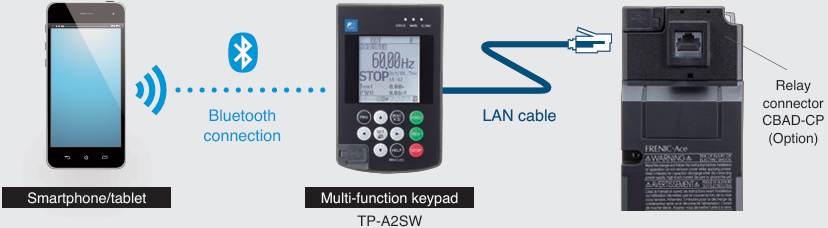

Remote multi-function keypad (optional) enables Bluetooth communication from a smartphone or tablet to read parameters and monitor operating conditions.

Enhances alarm history and traceback functions

Alarm history can save and display data for the past 10 alarms.
- Detailed data such as output frequency and output current for the most recent 4 alarms.

Number of saves

	No.
No optional keypad	1 *Inverter
Remote keypad (Type: TP-E2)	1 *Keypad
Remote multifunction keypad (Type: TP-A2SW)	100 *SD card

The numbers above indicate the number of tracebacks.

Life expectancy diagnosis and maintenance functions

The keypad and PC loader make it easy to check the status of equipment and detect problems before they occur, helping to reduce production. equipment maintenance time and downtime.

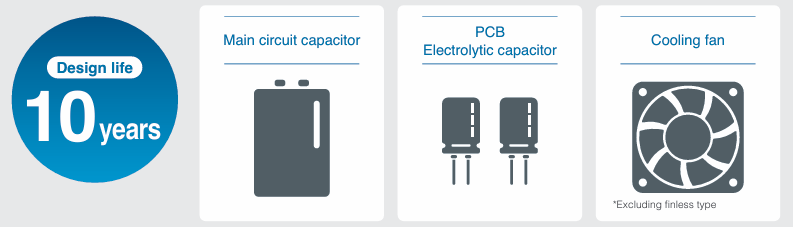

Long life expectancy (main components)

Many of the serviceable parts inside the inverter have been designed to meet customer equipment maintenance cycles.
Life expectancy conditions: ambient temperature 40°C, load factor 100% (HHD specification), 80% (HND specification)
*However, when the capacity is 3.7 kW or less, the load factor will be 80%.

Note 1: The above indicates design life (calculated value) and is not a guarantee value.
Note 2: The 3-phase 200 V/400 V capacity of 2.2 to 3.7 kW (HND specification) and single-phase 200 V (HND specification) are 7 years.

Other safety and environmental considerations

Includes safety functions
- Compliant with Europian safety standards.
(EN ISO 13849-1,Cat3/PL:e IEC/EN61800-5-2:2016 SIL3 (STO))
- The inverter comes with a function that enables it to adapt to machine safety. This facilitates the design of main circuit switching devices for ensuring safe stoppages.

Improves environmental resistance
Further strengthens PCB coating IEC60721-3-3/Class 3C2.
Note: Salt-resistant products, etc., can be manufactured to order.

Revised European RoHS Directive
Ten environmental impact substances
- Lead
- Mercury
- Cadmium
- Hexavalent chromium
- Polybrominated biphenyl (PBB)
- Polybrominated diphenyl ether (PBDE)
- Di-2-ethylhexyl phthalate (DEHP)
- Butyl benzyl phthalate (BBP)
- Di-n-butyl phthalate (DBP)
- Diisobutyl phthalate (DIBP)

Globally compliant
Compliant with overseas safety standards
- EC directive ( CE marking, UK UKCA Marking)
- UL standard/cUL standard
- KC certification

Major applications

Widely used in a variety of general and specialized applications: conveyors, fans and pumps, compressors, food processing machines, commercial washing machines, press machines, hoist cranes, stacker cranes.
